LC-672CF Fully Automatic Vucuum Disc Filling and Sealing Machine CE certificate

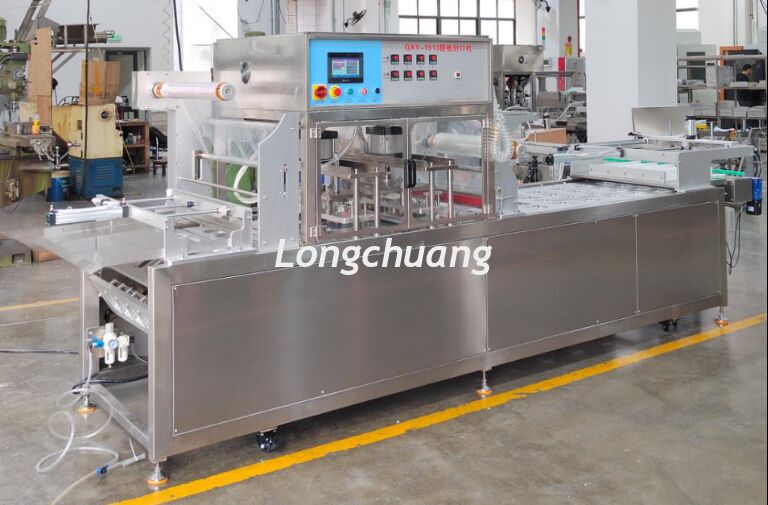

LC-QXY-1913 Fully Automatic Vucuum Disc Chain Plate Filling and Sealing Machine

This machine is a new type of chain plate type fully automatic sealing machine developed and manufactured according to demand.
It has high production efficiency.
The sealing film can be selected from roll film or sheet film according to customer needs. The automatic robotic arm places the sheet film and automatically heat-presses and seals.
The secondary sealing is more reliable.
It can seal four, six or eight boxes at a time, which greatly improves production efficiency and saves manpower.
It is very popular among users.





1. Functions and Configuration:
1. This machine seals two cups at a time.
2. Speed: Approximately 1500 cups/hour.
3. Workflow: Automatic cup dropping, automatic filling (twice) with vibration system, automatic sealing, and automatic finished product output.
4. Simple and elegant machine appearance, made of high-quality 304 stainless steel, food-grade industrial 2B plate with a brushed finish, dustproof, rustproof, acid and alkali resistant.
5. Purely hand-polished and polished, fine workmanship, small chassis interface, no sharp corners, conscientious quality.
6. All parts are CNC machined, accurate, standardized, and high precision, ensuring stable operation and long service life for extended periods.
7. The chain is made of food-grade 304 stainless steel, acid and alkali resistant, can be directly washed with water, durable and not easily deformed.
8. Frame structure: Thick steel structure welded together, cooled and formed for one month, then flattened by a gantry milling machine, solid and stable.
9. 10. Sealing mold structure, stainless steel + alumina, durable, rust-free, and with fast heat conduction.
11. Servo motor drive, classic digital temperature controller, even temperature distribution within ±1 degree Celsius, reliable sealing, leak-proof, and smooth surface finish.
12. Taiwan photoelectric eye tracking ensures the sealing pattern is aligned and centered.

13. Delta PLC program control, Taiwan HMI, fault alarm function, easy fault diagnosis.
14. Sealing material: Any material compatible with the box is acceptable, such as: plastic composite heat-sealing film or aluminum foil composite film, film thickness not less than 0.1mm.
15. Air pressure range: 4-8KG/CM2
16. Temperature range: 0-250 degrees Celsius
17. 16. Power: 5000-8000W
18. 17. Voltage: 380V 50HZ
19. Machine Dimensions: 4300*1200*1900 (mm) Customized models are subject to the final design drawing.
20. Net Weight: 1200 (KG)
21. Packaging: Wooden crate


2. Included accessories:
10 heating elements,
2 x 40A solid-state heaters,
2 x 4V210-08 solenoid valves,
2 x push-button switches, thermocouples.


3. Payment Method:
After the contract is signed, 50% of the total contract amount will be paid as a deposit. The remaining 50% can be paid after the equipment is completed and can be inspected on-site or confirmed by video.
After the equipment is inspected and qualified, the payment will be released and the equipment will be delivered.


4. Production time:
25-35 working days


5. Warranty Policy:
The machine is guaranteed for one year and provides lifetime service.


6. Usage Precautions:
1. This machine must be grounded before use.
2. Safety precautions: The internal molds are hot; do not put your hands inside while the machine is powered on or off.
3. In case of emergency, press the red emergency stop button.
4. Always turn off the power before installing the sealing film.
5. If sealing for the first time, gradually increase the temperature.
6. Ensure all four feet are level before placing the machine on a solid surface.
7. Regularly apply grease to the guide pillars to reduce wear on parts.
8. Clean the machine daily after get off work, especially the conveyor belt and motor.
In case of malfunction, do not open the electrical box unless you are a qualified professional; contact our after-sales service immediately.
